Advanced Excel · Lesson 6 of 12

Sorting, Filtering & Dynamic Arrays

Organise data with single and multi-level sorts and custom orders, find what matters with AutoFilter and Advanced Filter, and then let formulas do it for you with the dynamic array functions UNIQUE, SORT, SORTBY, FILTER and SEQUENCE, plus the power tool SUMPRODUCT.

● Live class 4✦ Excel for Microsoft 365, 2026Beginner–Intermediate⏱ 110 min
By the end of this lesson you can
  • Sort by one or many levels, by custom lists, by colour and left to right
  • Filter text, numbers and dates, and use Advanced Filter with AND/OR criteria ranges
  • Explain spill ranges, the
  • Build live lists with UNIQUE, SORT, SORTBY, FILTER and SEQUENCE
  • Answer multi-condition questions with SUMPRODUCT

The sample table

We will use this small sales table (sheet Reps, range A1:F9) so every result is easy to check by hand. Revenue is =D2*E2.

XReps: sample sales table
ABCDEF
1RepRegionProductUnitsPriceRevenue
2AshaNorthLaptop555,000275,000
3RaviWestPhone1218,000216,000
4MeeraSouthLaptop355,000165,000
5KabirNorthTablet825,000200,000
6ZoyaEastPhone1518,000270,000
7FarhanWestLaptop455,000220,000
8NehaSouthTablet1025,000250,000
9RohanNorthPhone918,000162,000
  • F2=D2*E2
  • Each pattern is copied down/across to the other cells in its column.

Sorting

Quick sort

Click any cell in a column and use Data → Sort A to Z or Sort Z to A (or Home → Sort & Filter). Excel detects the table around the cell and keeps each row together.

Watch outNever sort a single selected column

If you select only one column and sort, Excel asks whether to "expand the selection". Choosing "Continue with the current selection" sorts that column alone and scrambles your data: names no longer match their revenue. Always click a single cell inside the table, or select the whole table.

Multi-level (level-wise) sort

Data → Sort opens the Sort dialog, where you add levels. Excel sorts by the first level, then breaks ties with the next.

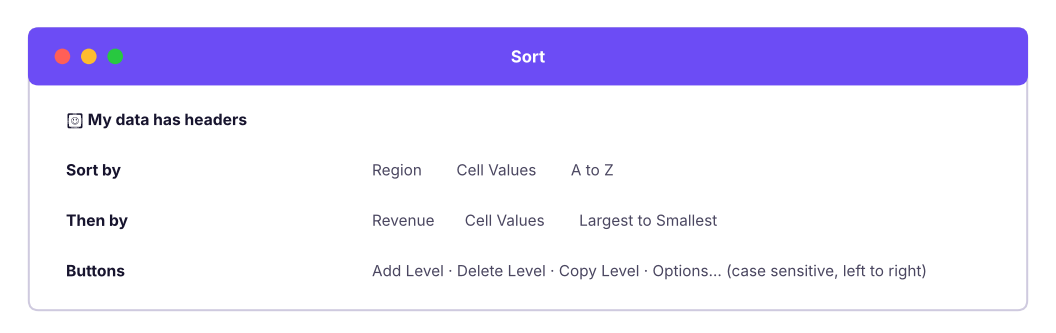

The Sort dialog with two levels: Region A to Z, then Revenue largest to smallest.
The Sort dialog with two levels: Region A to Z, then Revenue largest to smallest.
XResult: Region A→Z, then Revenue high→low
ABCD
1RepRegionProductRevenue
2ZoyaEastPhone270,000
3AshaNorthLaptop275,000
4KabirNorthTablet200,000
5RohanNorthPhone162,000
6NehaSouthTablet250,000
7MeeraSouthLaptop165,000
8FarhanWestLaptop220,000
9RaviWestPhone216,000

Other sort options

Option Where Example
Custom list Order → Custom List Sort months Jan, Feb, Mar instead of alphabetically; sort sizes S, M, L, XL; sort priority High, Medium, Low
Sort by colour Sort On → Cell Color / Font Color / Conditional Formatting Icon Put all red-flagged rows on top
Left to right Options → Sort left to right Reorder columns by a header row
Case sensitive Options Rarely needed
Random order Add a column =RAND() and sort by it Draw a random sample
TipKeep the original order

Before sorting raw data, add an Index column with 1, 2, 3 … (type 1 and 2, double-click the fill handle). You can always sort by Index to get back to the original order.

Filtering

AutoFilter

Click inside the data and press Ctrl + Shift + L (Data → Filter). Every header gets a drop-down arrow.

Filter type Options
Text filters Equals, does not equal, begins with, ends with, contains, does not contain, custom (with * and ?)
Number filters Greater than, between, Top 10 (items or percent), above/below average
Date filters Today, this week, last month, next quarter, year to date, between, and grouped tick-boxes by year → month → day
By colour Filter by cell colour, font colour or icon
Search box Type part of a value to tick only matching items

Filters on several columns combine with AND: Region = North and Product = Laptop. Within one column, ticking several items is OR: North or South.

TipFiltered totals

When you filter, the status bar shows "8 of 6,323 records found". Use SUBTOTAL(109, …) (Lesson 4) or the Table Total Row for totals that follow the filter. To copy only the visible rows, select them, press Alt + ; (visible cells only), then copy.

Here is the same idea on the full Superstore file: filter to Technology orders in the West with a discount above 20%.

Python
import pandas as pd
s = pd.read_csv("superstore_sales.csv")
f = s[(s.category == "Technology") & (s.region == "West") & (s.discount > 0.2)]
print(f"{len(f)} of {len(s):,} records found  |  visible sales total: {f.sales.sum():,.0f}  |  visible profit total: {f.profit.sum():,.0f}")
f[["order_id", "city", "sub_category", "sales", "discount", "profit"]].head(5)
Output
36 of 6,323 records found  |  visible sales total: 1,725,761  |  visible profit total: -323,079
order_id city sub_category sales discount profit
14 IN-2023-00007 Mumbai Phones 23,904 0.4 -4,153.37
37 IN-2023-00021 Ahmedabad Accessories 2,821 0.3 -281.53
76 IN-2023-00037 Ahmedabad Accessories 4,668 0.4 -1,569.18
77 IN-2023-00038 Ahmedabad Copiers 53,082 0.4 -11,596.45
134 IN-2023-00066 Pune Machines 22,155 0.3 -4,687.77
5 rows × 6 columns

Advanced Filter: complex AND/OR in one go

Data → Advanced filters with a criteria range: a small table with the same headers as your data.

XCriteria range: (North AND Revenue > 1,80,000) OR (Product = Phone)
ABC
1RegionProductRevenue
2North>180000
3Phone

Rows that match: Asha (North, 2,75,000), Kabir (North, 2,00,000), and every Phone row: Ravi, Zoya and Rohan. Rohan is in the North but has only 1,62,000; he still appears because he sells phones.

Step by stepRun an Advanced Filter
  1. Type the criteria range above your data or on another sheet (headers must match exactly).
  2. Click inside the data → Data → Advanced.
  3. List range: your data. Criteria range: the criteria table including headers.
  4. Choose Copy to another location and pick an output cell to keep the original intact.
  5. Tick Unique records only to get a list without duplicates (a quick alternative to Remove Duplicates).

Advanced Filter results are static: run it again after the data changes. For live results use FILTER.

Dynamic arrays: formulas that spill

In Microsoft 365, a formula can return many values. They spill into the cells below and to the right. The whole result is called the spill range; it has a blue border, and you can refer to it with the # operator.

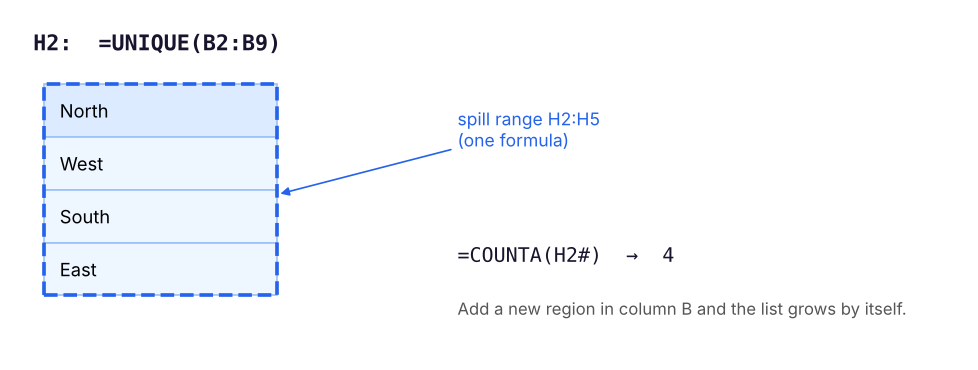

One formula in H2 spills into H2:H5. Refer to the whole result with H2#.
One formula in H2 spills into H2:H5. Refer to the whole result with H2#.
Watch out#SPILL!

If any cell in the area the result needs is not empty, the formula returns #SPILL!. Click the error to see which cell is blocking, and clear it. Spilling formulas also cannot be used inside an Excel Table; put them next to the table instead.

UNIQUE

=UNIQUE(array, [by_col], [exactly_once])

XUNIQUE examples (formulas in H2 and J2)
ABCDEF
1Region list =UNIQUE(B2:B9)Product list =UNIQUE(C2:C9)
2NorthLaptop
3WestPhone
4SouthTablet
5East

SORT and SORTBY

=SORT(array, [sort_index], [sort_order], [by_col]) sorts by a column position in the array. -1 means descending. =SORTBY(array, by_array1, [order1], …) sorts by other ranges, which do not have to be shown.

XTop performers: =SORT(A2:F9,6,-1) and =SORTBY(A2:A9,F2:F9,-1)
ABCDEFGH
1RepRegionProductUnitsPriceRevenueSORTBY names
2AshaNorthLaptop555000275000Asha
3ZoyaEastPhone1518000270000Zoya
4NehaSouthTablet1025000250000Neha
5FarhanWestLaptop455000220000Farhan
6RaviWestPhone1218000216000Ravi
7KabirNorthTablet825000200000Kabir
8MeeraSouthLaptop355000165000Meera
9RohanNorthPhone918000162000Rohan

Combine functions: =SORT(UNIQUE(B2:B9)) gives the regions alphabetically: East, North, South, West. =TAKE(SORT(A2:F9,6,-1),3) returns only the top 3 rows.

FILTER

=FILTER(array, include, [if_empty])

The include argument is a TRUE/FALSE test with one result per row. Combine conditions with * for AND and + for OR.

XFILTER examples
ABCDEFG
1North repsLaptops with ≥4 unitsNorth OR PhoneNo match
2AshaAshaAshaNone found
3KabirFarhanRavi
4RohanKabir
5Zoya
6Rohan
Logic Write it as Why it works
AND (cond1)*(cond2) TRUE×TRUE = 1; anything × FALSE = 0
OR (cond1)+(cond2) Any TRUE makes the sum ≥ 1
NOT (cond)=FALSE or NOT(cond) Reverses the test
TipAn interactive report in two cells

Put a Data Validation drop-down of regions in H1 (source =SORT(UNIQUE(B2:B9))), then =FILTER(A2:F9,B2:B9=H1) below it. Choosing a region instantly shows its reps. This is the formula version of a slicer.

SEQUENCE and friends

Function Example Result
SEQUENCE(rows, [cols], [start], [step]) =SEQUENCE(5) 1, 2, 3, 4, 5 down a column
=SEQUENCE(1,12,1,1) 1 to 12 across a row
=SEQUENCE(7,1,DATE(2026,4,27),1) Seven consecutive dates
RANDARRAY(rows, cols, min, max, integer) =RANDARRAY(5,1,1,100,TRUE) Five random whole numbers
TAKE(array, rows) / DROP(array, rows) =TAKE(SORT(F2:F9,,-1),3) Top 3 revenues
VSTACK / HSTACK =VSTACK(Jan!A2:C50,Feb!A2:C50) Stack two ranges into one
CHOOSECOLS(array, 1, 6) Only columns 1 and 6
GROUPBY(row_fields, values, function) =GROUPBY(B2:B9,F2:F9,SUM) A summary by region, like a pivot table, in one formula (newer Microsoft 365)

SUMPRODUCT: the original array function

SUMPRODUCT multiplies arrays element by element and adds the results. It works in every version of Excel and is the classic way to do multi-condition sums before SUMIFS existed, plus things SUMIFS cannot do.

XSUMPRODUCT on the Reps table
ABC
1QuestionFormulaResult
2Total revenue (units × price)=SUMPRODUCT(D2:D9,E2:E9)1,758,000
3Revenue in North=SUMPRODUCT((B2:B9="North")*D2:D9*E2:E9)637,000
4Phone units in West or East=SUMPRODUCT((C2:C9="Phone")*((B2:B9="West")+(B2:B9="East"))*D2:D9)27
5Rows where units > 8=SUMPRODUCT(--(D2:D9>8))4
6Weighted average price=SUMPRODUCT(D2:D9,E2:E9)/SUM(D2:D9)26,636.36

Check: Phone units in West or East = Ravi 12 + Zoya 15 = 27. Rows with more than 8 units: Ravi, Zoya, Neha, Rohan = 4.

NoteWhy the double minus `--`?

(D2:D9>8) produces TRUE/FALSE values. SUMPRODUCT ignores logical values unless they are converted to numbers. -- (minus minus) turns TRUE into 1 and FALSE into 0. Multiplying by another array (*) also converts them, which is why the other formulas do not need it.

Putting it together: a self-updating region summary

XRegion summary with UNIQUE + SUMIFS + SORT
ABC
1Region =SORT(UNIQUE(B2:B9))Revenue =SUMIFS(F2:F9,B2:B9,H2#)Share
2East270,00015.4%
3North637,00036.2%
4South415,00023.6%
5West436,00024.8%

In Microsoft 365 the second column is a single formula, =SUMIFS(F2:F9,B2:B9,H2#): because H2# refers to the whole spilled list, SUMIFS spills one total per region. Add a new region to the data and the summary grows automatically.

Let's confirm the numbers with pandas:

Python
reps = pd.DataFrame({"rep": ["Asha","Ravi","Meera","Kabir","Zoya","Farhan","Neha","Rohan"],
                     "region": ["North","West","South","North","East","West","South","North"],
                     "units": [5,12,3,8,15,4,10,9], "price": [55000,18000,55000,25000,18000,55000,25000,18000]})
reps["revenue"] = reps.units * reps.price
summary = reps.groupby("region")["revenue"].sum().to_frame()
summary["share"] = (summary.revenue / summary.revenue.sum()).round(3)
summary
Output
revenue share
region
East 270000 0.15
North 637000 0.36
South 415000 0.24
West 436000 0.25
4 rows × 2 columns

Summary

Key takeaways
Quick quiz6 questions · tap an answer to check it

1. You select only the Revenue column and sort it, choosing "Continue with the current selection". What happens?

Answer: B. Sorting a single column separates it from the rest of the row. Always sort the whole table.

2. In an Advanced Filter criteria range, two conditions on the same row mean:

Answer: A. Same row = AND; different rows = OR.

3. =FILTER(A2:A9,(B2:B9="North")+(C2:C9="Phone")) returns reps who are:

Answer: B. Adding conditions works as OR.

4. A formula returns #SPILL!. What is the most likely cause?

Answer: B. Dynamic arrays need empty cells to spill into.

5. What does =SUMPRODUCT(--(D2:D9>8)) calculate?

Answer: B. -- turns TRUE/FALSE into 1/0, and SUMPRODUCT adds them up: a count.

6. Which formula lists each region once, sorted A to Z?

Answer: B. UNIQUE removes duplicates and SORT orders the result.
ExerciseSuperstore with dynamic arrays

In a copy of superstore_sales.csv (as a Table named S): (1) list the distinct sub-categories, sorted; (2) show all orders from Kochi with profit below zero; (3) show the 5 largest order lines by sales (order ID, city, sales); (4) count distinct customers.

Show solution

(1) =SORT(UNIQUE(S[sub_category])) (2) =FILTER(S,(S[city]="Kochi")*(S[profit]<0),"None") (3) =TAKE(SORTBY(CHOOSECOLS(S,2,9,16),S[sales],-1),5) (check the column numbers in your file: here 2 = order_id, 9 = city, 16 = sales) (4) =COUNTA(UNIQUE(S[customer_id]))

Interview cornerQuestions you may be asked

Q: How would you get a list of unique values in Excel? UNIQUE in Microsoft 365; otherwise Remove Duplicates on a copy, Advanced Filter with "Unique records only", or a pivot table.

Q: Explain AND/OR logic in FILTER or SUMPRODUCT. Each condition becomes an array of TRUE/FALSE. Multiplying arrays gives 1 only when all are TRUE (AND); adding gives at least 1 when any is TRUE (OR).

Q: How do you sort by a custom order such as High, Medium, Low? Sort dialog → Order → Custom List, and add the list; or use SORTBY with MATCH(range,{"High","Medium","Low"},0) as the sort key.
