SQL for Data Analysis · Lesson 2 of 15

ER Diagrams, Relationships, Keys & Normalisation

Design databases the way professionals do. Draw ER diagrams, read crow's-foot notation, model one-to-one, one-to-many and many-to-many relationships, master every type of key (super, candidate, primary, alternate, composite, foreign, surrogate) and normalise tables to 3NF.

● SQL class 1✦ 2026Beginner⏱ 110 min
⬇ Download PDF
By the end of this lesson you can
  • Read and draw an ER diagram with entities, attributes and relationships
  • Identify 1:1, 1:N and M:N relationships and resolve M:N with a junction table
  • Define super, candidate, primary, alternate, composite, foreign, surrogate and unique keys, with examples
  • Explain referential integrity and what happens on delete/update of a parent row
  • Normalise a flat table into 1NF, 2NF and 3NF, and know when to denormalise
Datasets used

Why design matters

A database that is designed badly is slow, wastes space and, worst of all, lets data contradict itself. Imagine the customer's city stored in every order row: if the customer moves, you must update thousands of rows, and missing one creates two different "truths". Good design stores each fact once and connects tables with keys.

Entity–Relationship (ER) diagrams

An ER diagram is a picture of the data model before any table is created.

DefinitionBuilding blocks

Entity: a real-world thing you store data about: Customer, Order, Product, Employee. Becomes a table. Attribute: a property of an entity: name, city, price. Becomes a column. Relationship: how entities are associated: a Customer places Orders. Implemented with foreign keys. Cardinality: how many of one entity relate to another: one-to-one, one-to-many, many-to-many. Participation (optionality): whether the relationship is mandatory (every order must have a customer) or optional (a customer may have zero orders).

Crow's-foot notation

The most common notation in industry draws symbols at the ends of each relationship line:

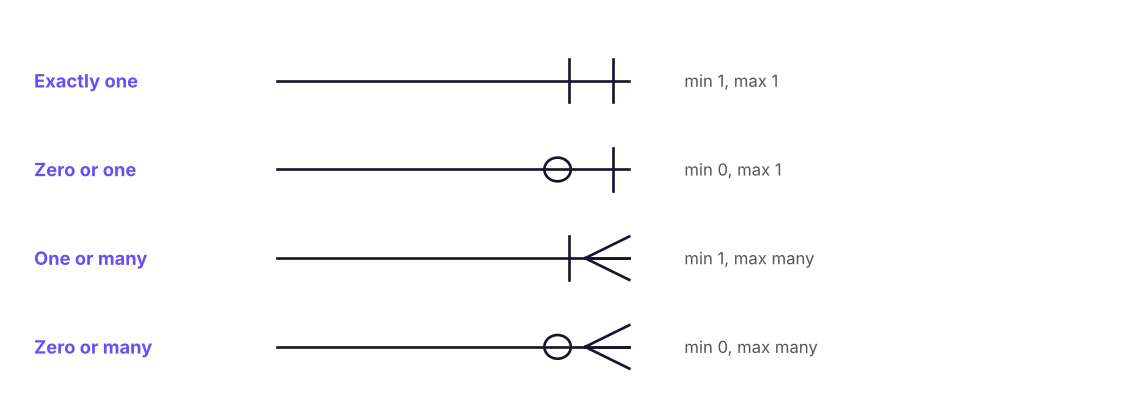

Crow's-foot symbols. Read each end as "minimum … maximum".
Crow's-foot symbols. Read each end as "minimum … maximum".

Reading example: Customer ||——o< Order means "each order belongs to exactly one customer; each customer places zero or many orders".

Types of relationships

One-to-one (1:1)

Each row in A matches at most one row in B. Example: Employee ↔ Employee_Bank_Details. Often used to split sensitive or rarely used columns into a separate, more protected table. Implemented with a foreign key that is also unique (often the same as the primary key).

One-to-many (1:N) — the most common

One row in A matches many rows in B; each B row matches one A row. Examples: Customer → Orders, Department → Employees, Category → Products. The foreign key goes on the "many" side (orders.customer_id).

Many-to-many (M:N)

Many rows in A match many in B: Students ↔ Courses, Orders ↔ Products, Actors ↔ Movies. Relational tables cannot store this directly, so we add a junction (bridge, associative) table that holds a pair of foreign keys, turning one M:N into two 1:N relationships.

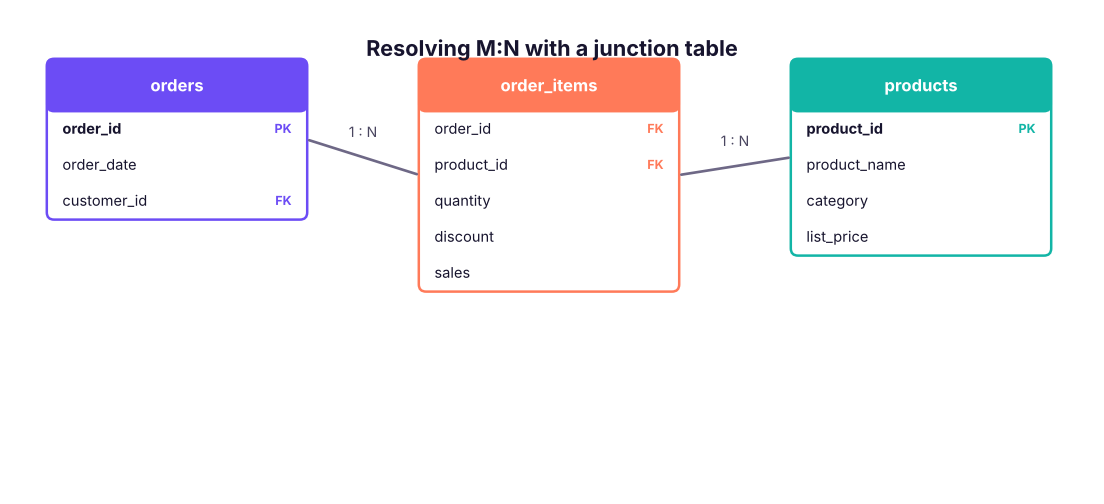

An order contains many products and a product appears in many orders. The junction table order_items resolves the many-to-many relationship and stores facts about each pair (quantity, discount).
An order contains many products and a product appears in many orders. The junction table order_items resolves the many-to-many relationship and stores facts about each pair (quantity, discount).
Relationship Example Where the foreign key goes
1 : 1 Employee – Passport Either side, marked UNIQUE
1 : N Department – Employees On the N side (employees.dept_id)
M : N Students – Courses In a junction table enrolments(student_id, course_id)
Self (recursive) Employee – Manager In the same table: employees.manager_id → employees.emp_id

Let's check the real cardinalities in our retail data with SQL. How many orders does each customer have, and how many items does each order have?

SQL
SELECT MIN(n_orders) AS min_orders_per_customer,
       MAX(n_orders) AS max_orders_per_customer,
       ROUND(AVG(n_orders * 1.0), 2) AS avg_orders_per_customer
FROM (SELECT customer_id, COUNT(*) AS n_orders FROM orders GROUP BY customer_id) AS t;
Result
min_orders_per_customer max_orders_per_customer avg_orders_per_customer
1 10 4.08
1 rows × 3 columns
SQL
SELECT items_in_order, COUNT(*) AS number_of_orders
FROM (SELECT order_id, COUNT(*) AS items_in_order FROM order_items GROUP BY order_id) AS t
GROUP BY items_in_order
ORDER BY items_in_order;
Result
items_in_order number_of_orders
1 1394
2 920
3 455
4 431
4 rows × 2 columns

So Customer → Orders is 1:N, and Order → Order items is 1:N (1 to 4 items per order here).

Keys

Keys are columns (or sets of columns) with special meaning. They are among the most frequently asked interview topics.

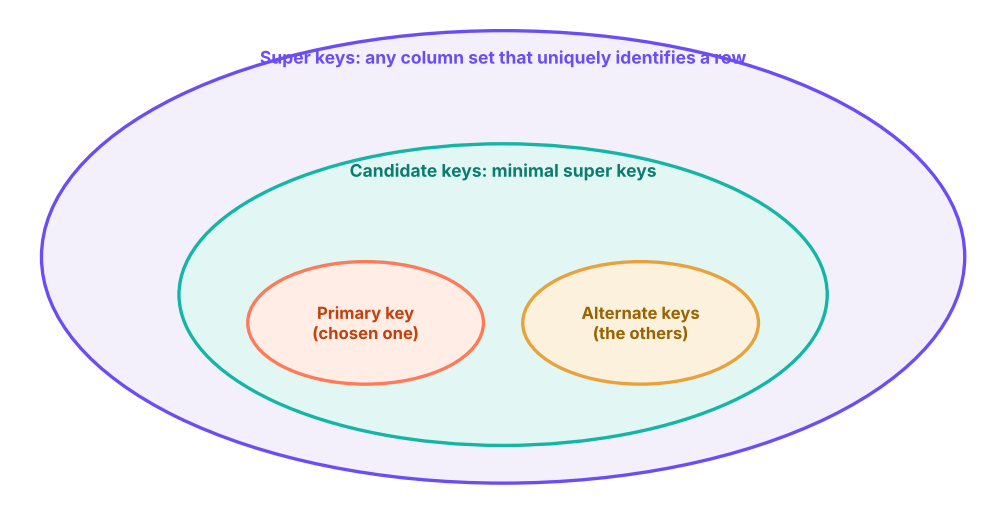

How the main key types relate: every candidate key is a minimal super key; one candidate is chosen as the primary key and the rest become alternate keys.
How the main key types relate: every candidate key is a minimal super key; one candidate is chosen as the primary key and the rest become alternate keys.

Example table employees(emp_id, email, pan_number, name, dept_id, phone), where emp_id, email and pan_number are each unique:

Key type Definition Example
Super key Any set of columns that uniquely identifies a row (may include extra columns) {emp_id}, {emp_id, name}, {email, dept_id}
Candidate key A minimal super key: remove any column and it stops being unique {emp_id}, {email}, {pan_number}
Primary key (PK) The candidate key chosen to identify rows. Unique, not NULL, one per table emp_id
Alternate key Candidate keys not chosen as primary; enforce them with UNIQUE email, pan_number
Composite key A key made of two or more columns (order_id, product_id) in order_items; (student_id, course_id) in enrolments
Foreign key (FK) A column that refers to a PK (or unique key) in another table employees.dept_id → departments.dept_id
Unique key A UNIQUE constraint: no duplicates, but (in SQL Server) one NULL is allowed phone
Surrogate key An artificial key with no business meaning, often an auto-number customer_key INT IDENTITY(1,1)
Natural key A key with business meaning PAN number, GSTIN, ISBN, email
TipSurrogate or natural?

Natural keys can change (people change email, products get recoded) and can be long. Most warehouses and Power BI models use surrogate integer keys for joins, and keep natural keys as alternate (unique) keys.

Primary key vs unique key

Primary key Unique key
Duplicates allowed No No
NULL allowed No Yes (SQL Server allows one NULL; PostgreSQL allows many)
Per table Exactly one Many
Default index (SQL Server) Clustered Non-clustered

Referential integrity

A foreign key guarantees that every child row points to a parent that exists: you cannot insert an order for customer C9999 if that customer does not exist. What happens when a parent row is deleted or its key is updated is controlled by the FK's actions:

Action On DELETE of the parent Use when
NO ACTION (default) The delete is blocked if children exist Most business data
CASCADE Children are deleted too Order → order items
SET NULL Children's FK becomes NULL Employee → manager who leaves
SET DEFAULT Children get the column's default Rare
SQL
CREATE TABLE departments (
    dept_id   INT PRIMARY KEY,
    dept_name VARCHAR(50) NOT NULL UNIQUE
);
CREATE TABLE employees (
    emp_id     INT PRIMARY KEY,
    email      VARCHAR(100) NOT NULL UNIQUE,          -- alternate key
    name       VARCHAR(100) NOT NULL,
    dept_id    INT NOT NULL REFERENCES departments(dept_id),   -- foreign key
    manager_id INT NULL REFERENCES employees(emp_id)           -- self-referencing FK
);

Lesson 4 shows these constraints in action.

Normalisation

Normalisation organises columns and tables to reduce redundancy and avoid anomalies:

Start with the flat Superstore file, which repeats customer and product details on every order line:

SQL
SELECT TOP 5 order_id, order_date, customer_id, customer_name, city, product_id, product_name, category, quantity, sales
FROM superstore;
Result
order_id order_date customer_id customer_name city product_id product_name category quantity sales
IN-2023-00001 2023-01-01 C0765 Ishaan Gupta Bengaluru P0059 Nova Phone 223 Technology 2 36,000
IN-2023-00001 2023-01-01 C0765 Ishaan Gupta Bengaluru P0050 Orbit Appliance 798 Office Supplies 1 3,850
IN-2023-00001 2023-01-01 C0765 Ishaan Gupta Bengaluru P0011 Orbit Table 248 Furniture 4 62,080
IN-2023-00002 2023-01-03 C0791 Kabir Singh Ahmedabad P0037 Crest Storage 946 Office Supplies 2 5,216
IN-2023-00003 2023-01-03 C0049 Sneha Khan Ahmedabad P0018 Crest Bookcase 170 Furniture 3 24,591
5 rows × 10 columns

First normal form (1NF)

The flat file is already in 1NF: one product per row, and every row has a unique row_id. The natural key would be (order_id, product_id), but 70 lines repeat the same product within the same order, which is exactly why real systems add a surrogate key such as row_id or item_id.

Second normal form (2NF)

1NF and every non-key column depends on the whole key, not part of it (this matters only with composite keys). With key (order_id, product_id):

Third normal form (3NF)

2NF and no transitive dependency: non-key columns must depend only on the key, not on other non-key columns. In orders, customer_name, city and region depend on customer_id, not on order_id → move them to a customers table.

"Every non-key attribute must provide a fact about the key, the whole key, and nothing but the key." (Bill Kent)

Normalising the flat Superstore file to 3NF gives the four-table RetailDB design.

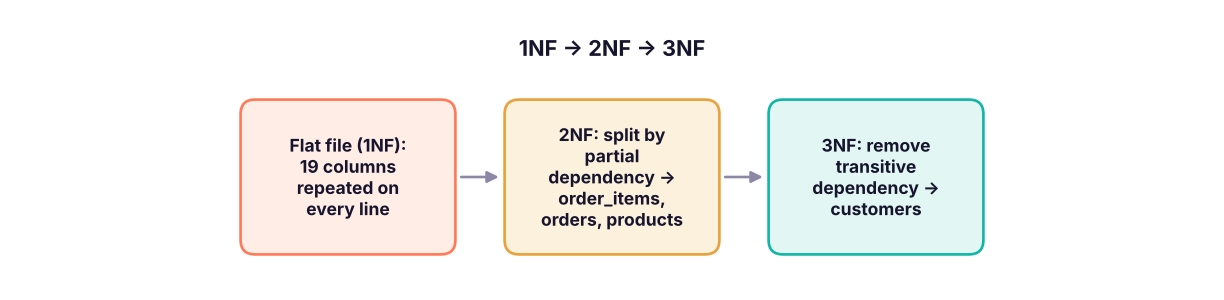

Normalising the flat Superstore file to 3NF gives the four-table RetailDB design.

How much repetition did normalisation remove? Count the distinct customers and products versus rows:

SQL
SELECT COUNT(*)                     AS order_lines,
       COUNT(DISTINCT order_id)     AS orders,
       COUNT(DISTINCT customer_id)  AS customers,
       COUNT(DISTINCT product_id)   AS products
FROM superstore;
Result
order_lines orders customers products
6323 3200 785 78
1 rows × 4 columns

The flat file stores customer details 6,323 times; the normalised design stores them once per customer (fewer than 800 rows).

Normal form Rule in plain words
1NF One value per cell; no repeating columns; a key exists
2NF No column depends on only part of a composite key
3NF No column depends on another non-key column
BCNF Every determinant is a candidate key (stricter 3NF)
4NF / 5NF Remove multi-valued and join dependencies (rare in practice)

Denormalisation and the star schema

Transactional systems (OLTP) are normalised for safe, fast writes. Analytical systems (OLAP, data warehouses, Power BI) are often denormalised into a star schema: one central fact table (sales events with numbers) surrounded by dimension tables (customer, product, date, region) to make reading and aggregating fast and simple. You will build one in the Power BI track (Lesson 3).

OLTP (normalised) OLAP / warehouse (star schema)
Purpose Run the business: place orders, update stock Analyse the business
Operations Many small inserts and updates Large reads and aggregations
Design 3NF, many tables Fact + dimension tables
Examples App database in SQL Server/PostgreSQL Snowflake, BigQuery, Fabric, Power BI model

Summary

Key takeaways
Quick quiz6 questions · tap an answer to check it

1. Students can enrol in many courses and courses have many students. How do you model this?

Answer: C. A junction table resolves M:N into two 1:N relationships.

2. In a 1:N relationship between departments and employees, where does the foreign key go?

Answer: B. The FK goes on the "many" side: employees.dept_id.

3. Which statement about a primary key is FALSE?

Answer: C. A table has one primary key, which may be composite.

4. email is unique in the employees table but emp_id was chosen as the primary key. What is email?

Answer: B. Unchosen candidate keys are alternate keys, enforced with UNIQUE.

5. In orders(order_id, customer_id, customer_city), customer_city depends on customer_id. Which normal form is violated?

Answer: C. A non-key column depending on another non-key column is a transitive dependency, violating 3NF.

6. What does ON DELETE CASCADE on order_items.order_id do?

Answer: A. CASCADE propagates the delete to child rows.
ExerciseDesign a library database

A library has members, books and loans. A member can borrow many books over time; a book (copy) can be borrowed many times; each loan has a borrow date, due date and return date. Books have an ISBN, title and author; authors can write many books and a book can have several authors. Draw the entities, keys and relationships.

Show solution
Interview cornerQuestions you may be asked

Q: Difference between primary key, unique key and foreign key? PK uniquely identifies rows, no NULLs, one per table. A unique key also prevents duplicates but allows a NULL (one in SQL Server) and a table can have many. A foreign key references a PK/unique key in another table to enforce relationships.

Q: What is a candidate key? A composite key? A candidate key is a minimal set of columns that uniquely identifies rows; one is chosen as the PK. A composite key uses two or more columns together, such as (order_id, product_id).

Q: What is normalisation and why denormalise? Normalisation removes redundancy and anomalies (1NF–3NF). Data warehouses denormalise into star schemas to make analytical queries simpler and faster.

Practise more online

Free, trusted places to test yourself on this topic. Links open the original site in a new tab.
